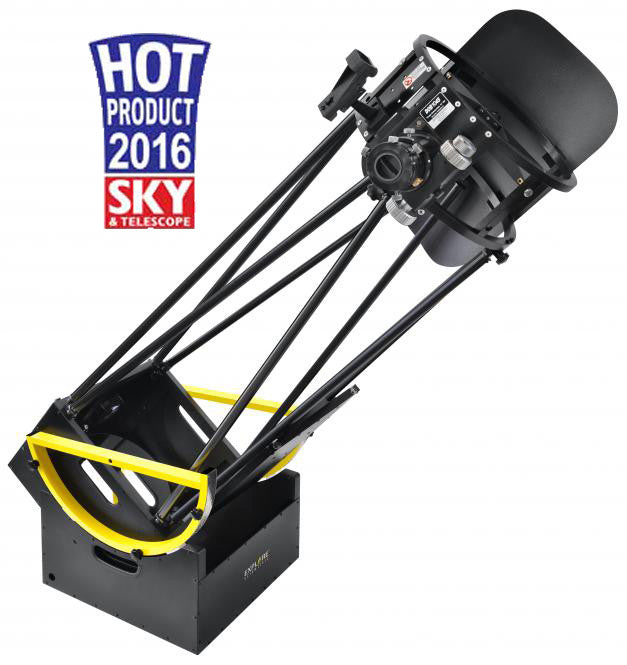

Explore Scientific - Generation II - 10-inch Truss Tube Dobsonian Telescope - DOB1045-00
This item is currently out of stock and on backorder.
Estimated restock is August 2021.

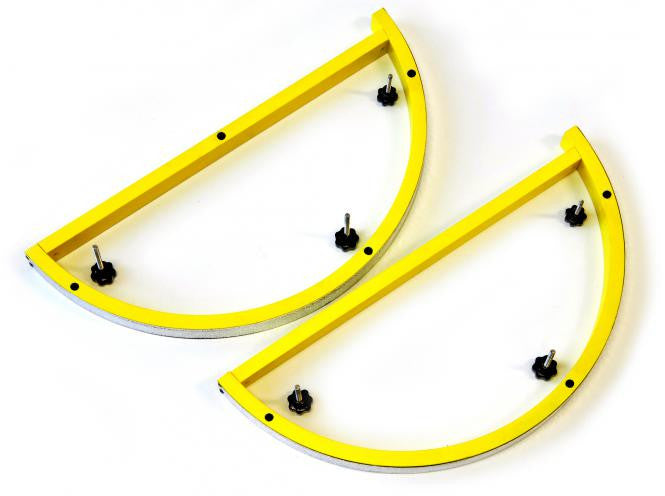

This is a Generation II telescope. All updates have been performed on this telescope. No telescope type has changed the hobby quite as much as the Dobsonian Telescope. Before the popularization of John Dobson’s altazimuth mount design with low center of gravity combined with a Newtonian optical assembly, the vast majority of amateur telescopes consisted of small telescopes with small mounts - which made them difficult to use for serious deep sky observations by beginners. Large commercial telescopes could certainly do the job but were relatively expensive. The ingenious combination of simple yet effective mechanisms with big-aperture Newtonian optics gives the Dobsonian Telescope worldwide popularity, and this telescope design typically offers the largest aperture per dollar of any telescope type. Disassembly of the scope without tools ensures a trouble-free transport of this great scope even in very small cars. The entire structure has been optimized for maximum stiffness with minimal weight. The combination of large altitude bearings with optimized metal structural design allows fine and smooth adjustment, even at higher magnifications.The ideal workhorse for the deep sky observers. A 254mm aperture mirror collects more than 1,500 times as much light as the naked eye. Details on planets and deep sky objects will be visible even for inexperienced observers. Many star clusters are resolved to the core, spiral structure in distant galaxies is visible, and the complex matrix of bright and dark nebulae are an unforgettable experience. Oversize altitude (16.5-inch) and azimuth (13-inch) bearings allow for smooth operation. Easy-to-adjust collimation mechanisms for primary and secondary mirrors require no additional tools and only one person is a unique feature of this design.

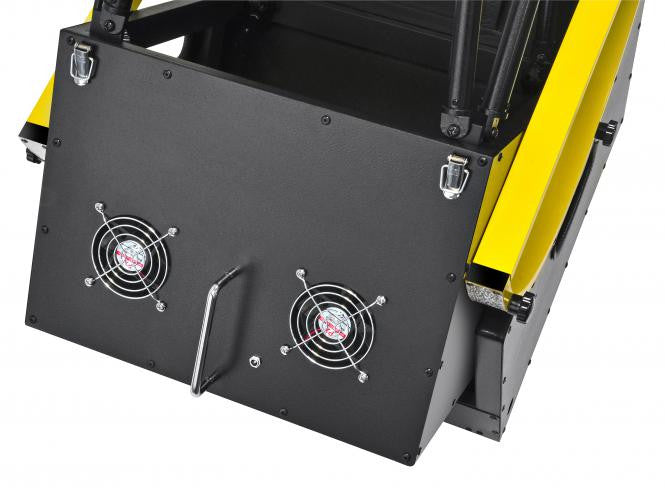

Includes: Two-Speed 2-inch Rack & Pinion Focuser with 1.25-inch Adapter; LED Red Dot Finder, Collimation Assist Tool; Flexible Light Weight Light Baffle; Two Primary Mirror Fans with Battery Pack; Instructions
|Focal length||1,270 mm|
|Primary mirror diameter||25.4 cm|
|Mirror cell support points||9|

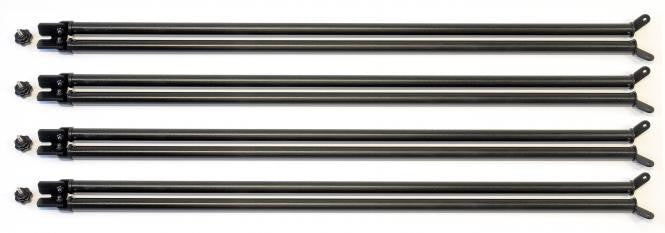

|Truss pole length||64 cm|
|Truss pole diameter||20 mm|

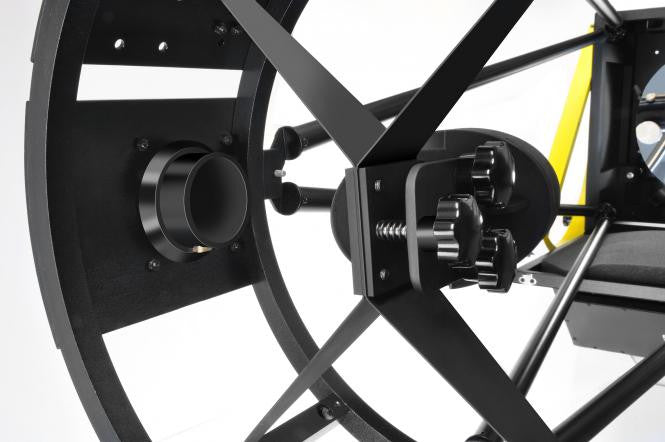

|Secondary cage assembly diameter||33 cm|
|Secondary cage assembly weight||6.5 pounds|
|Secondary cage assembly height||17 cm|

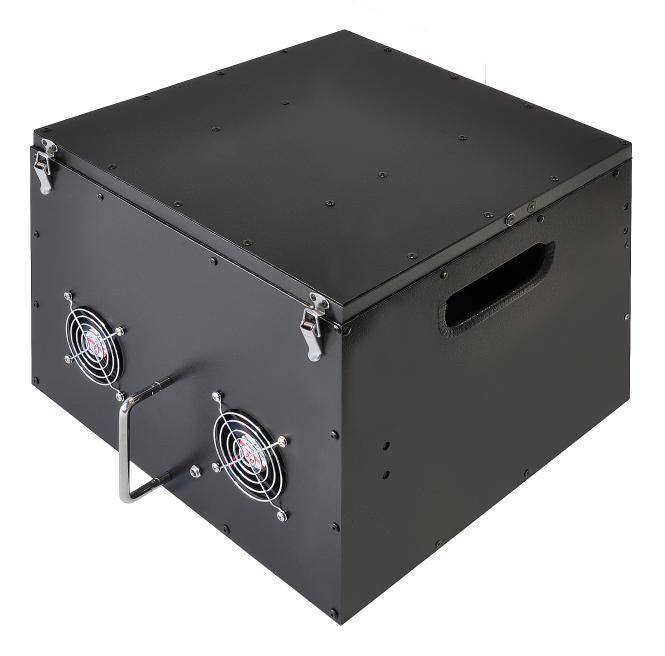

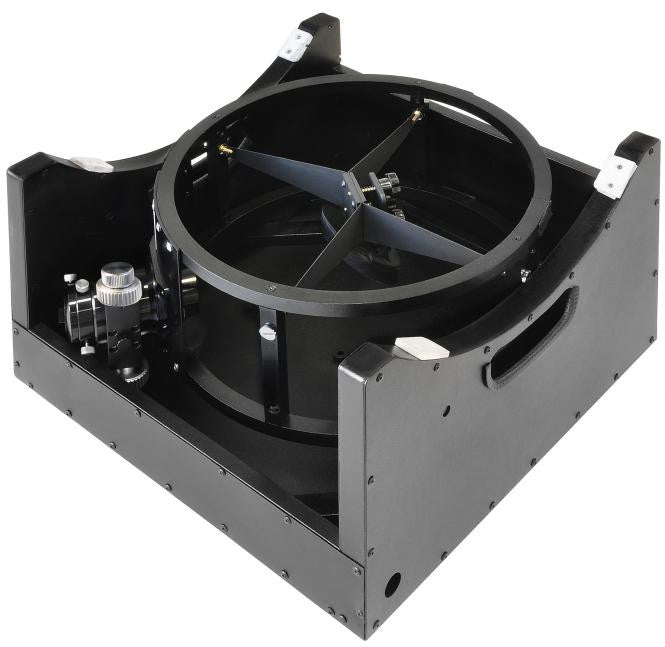

|Mirror box/rocker box height||42 cm|
|Mirror box weight *||35 pounds|
|Height to center of eyepiece at zenith||119 cm|
|Theoretical limiting stellar magnitude||0.46 arc sec|
|Theoretical Rayleigh limit||0.54 arc sec|
|Theoretical limiting magnitude||14.7|
|Theoretical maximum magnification||500x|
|*||Mirror weight can vary because of the manufacturing process; these values are approximate|
Limited Warranty is one year, which converts to the Explore STAR Transferrable Product Warranty when product is registered within 60 days of purchase. Click Here to register.
To download printable PDF manual Click Here
CA Residents: Prop 65 WARNING(S)
