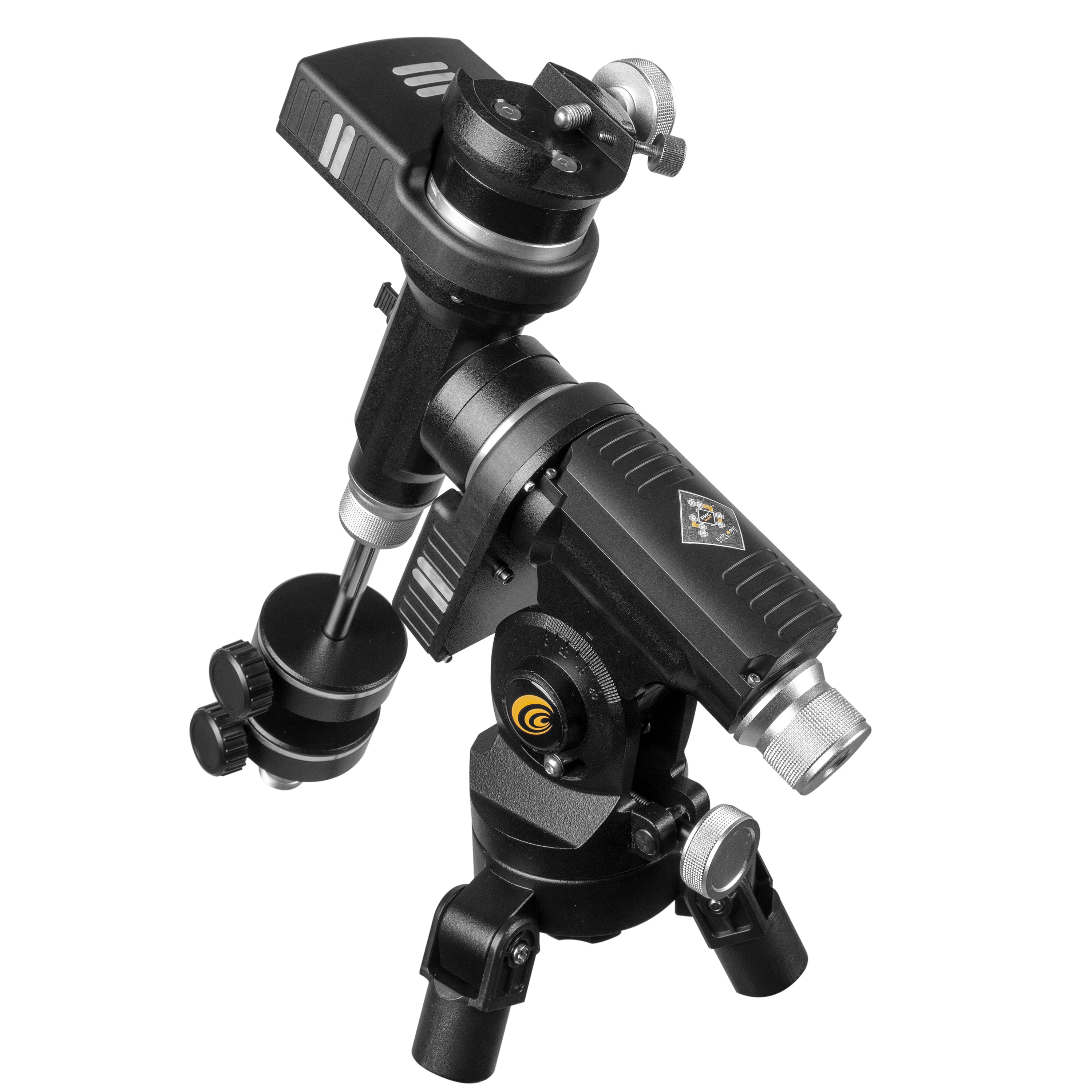

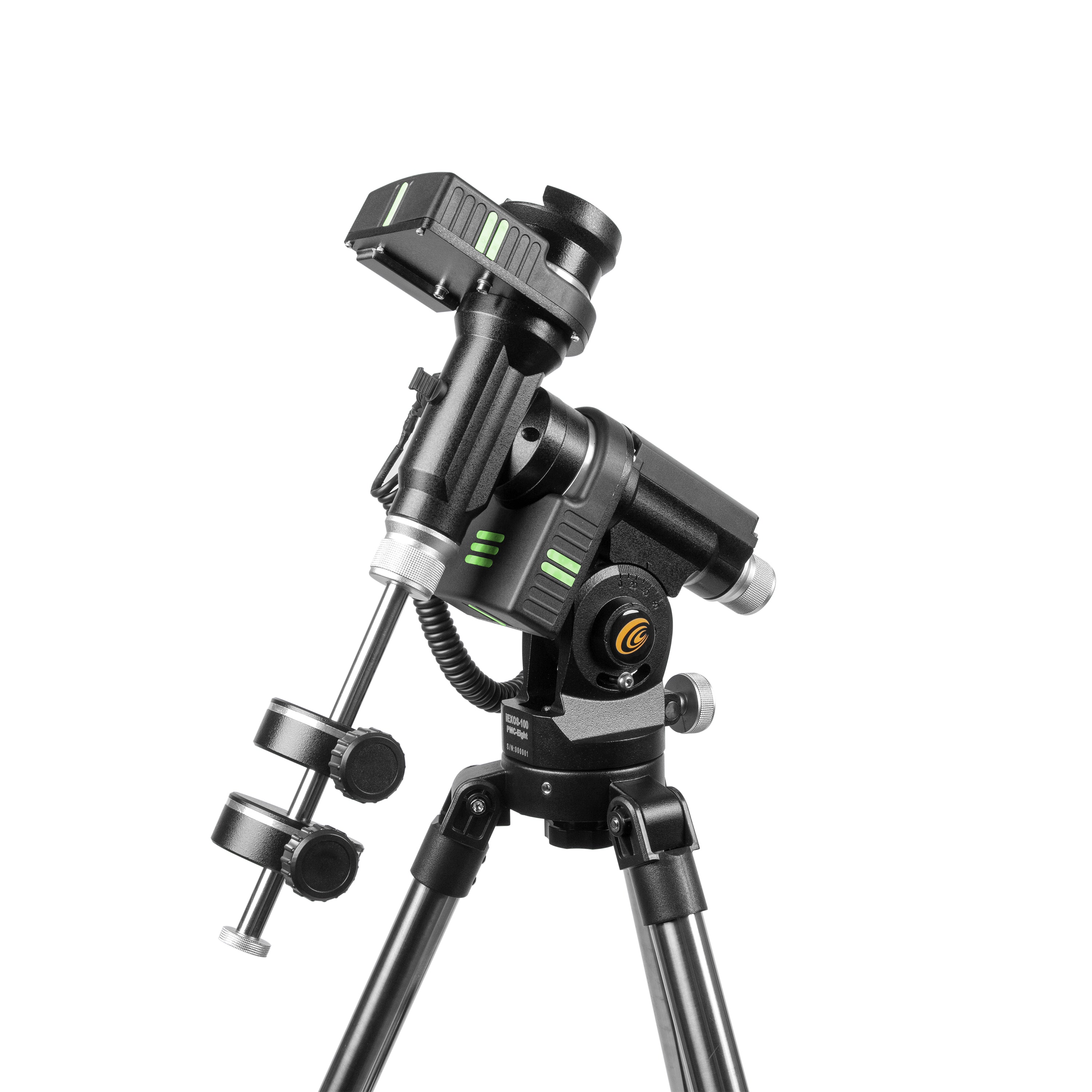

IEXOS-100-2 Système de tracker équatorial PMC-Eight avec WiFi et Bluetooth®

Prix de vente$441.00
En stock

"C'est le système portable ultime en ce qui me concerne."
-Jim Johnston Astrophotographe

Fonctionnalités

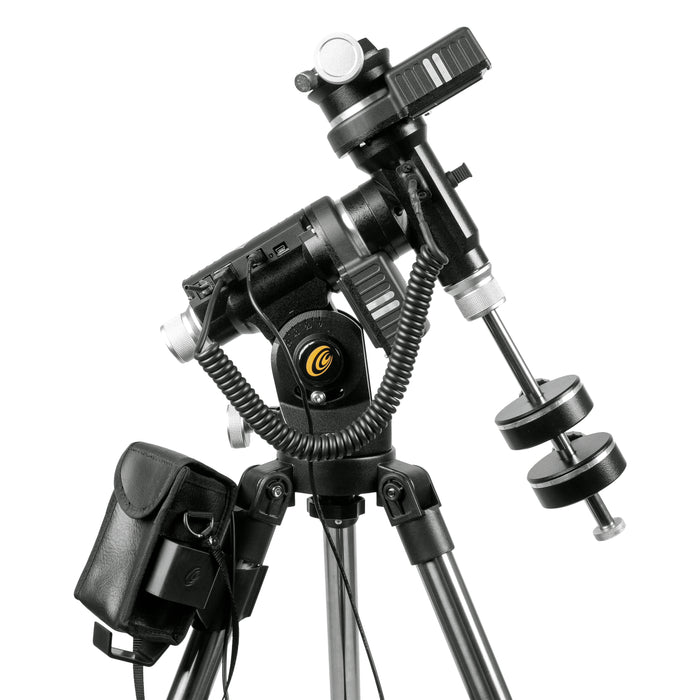

L'IEXOS-100 est un système goto astronomique qui utilise une conception de montage équatoriale allemande éprouvée et explore le système révolutionnaire de contrôle de la précision PMC-Eight ™ de Scientific pour naviguer parfaitement dans le ciel nocturne et suivre les objets pendant qu'ils parcourent. Les fonctionnalités incluent:

  • Intégration Explore le système scientifique PMC-Eight ™ qui transcende le processeur unique standard de l'industrie en utilisant huit processeurs qui opèrent indépendamment les uns des autres pour se concentrer sur les fonctions définies, ce qui entraîne une réactivité supérieure, une efficacité, une fiabilité et des intervalles de synchronisation incroyablement rapides.
  • Embrayage des engrenages à ver à double axe avec des lecteurs de moteur pas à pas de précision de précision de précision
  • L'application Intuitive Explorestars, qui est disponible pour Apple, Android et Windows Tablets, qui permet de faire fonctionner le système GOTO. Grâce à cela, les utilisateurs peuvent rapidement aligner leur télescope, naviguer dans les étoiles et apprendre des détails sur des dizaines de milliers d'objets célestes
  • Les axes de PR et de déclinaison serrés sont lisses et permettent un équilibrage précis, ce qui rend le processus de repositionnement de votre télescope efficace
  • Trou de vue d'alignement polaire à travers l'axe RA et contrôle précis d'altitude pour l'alignement rapide sans portée polaire.

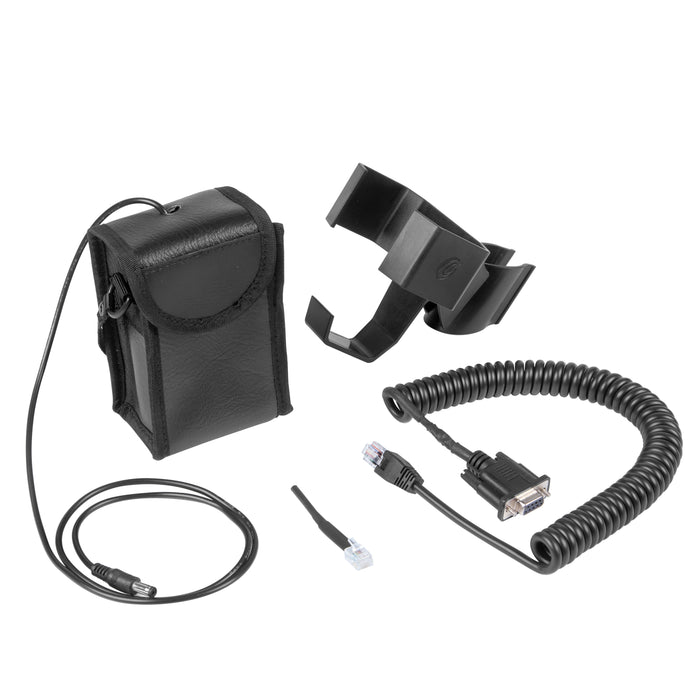

  • Pack de batterie alimentant le système PMC-Eight ™ utilise 8 piles C et est fixé dans un support sur l'une des jambes du trépied lorsqu'elle est utilisée

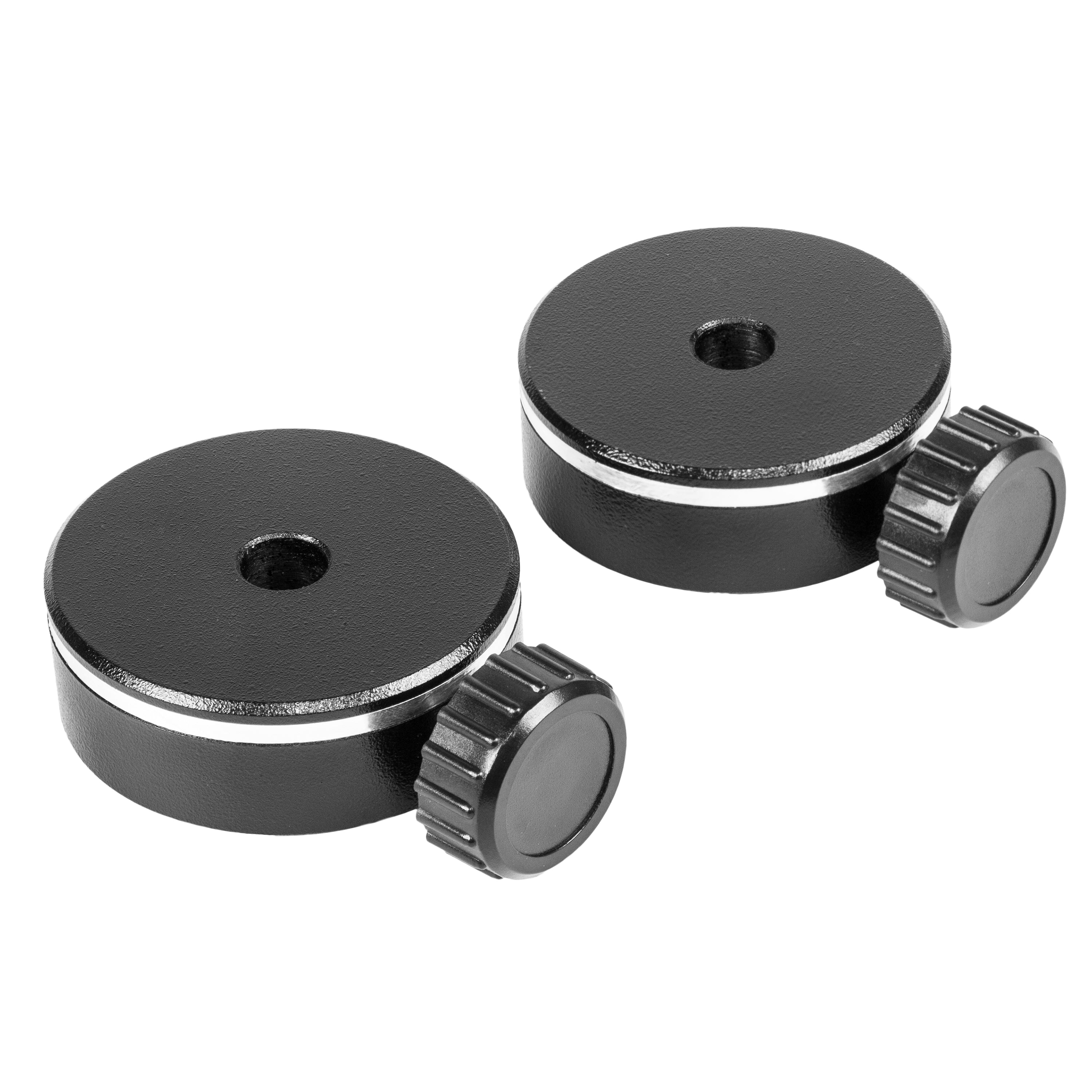

  • Deux contrepoids de 1 kg inclus
  • Marquages ​​brillants dans le montage sur le mont et le trépied

La description

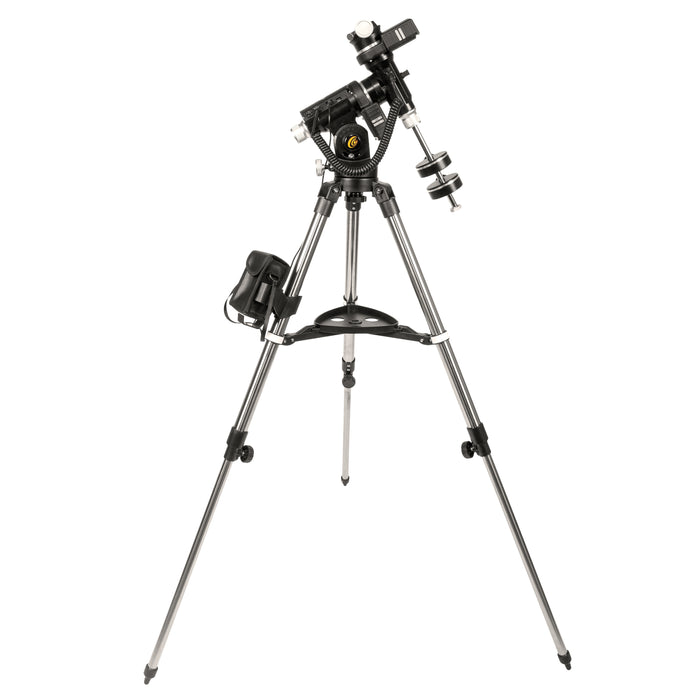

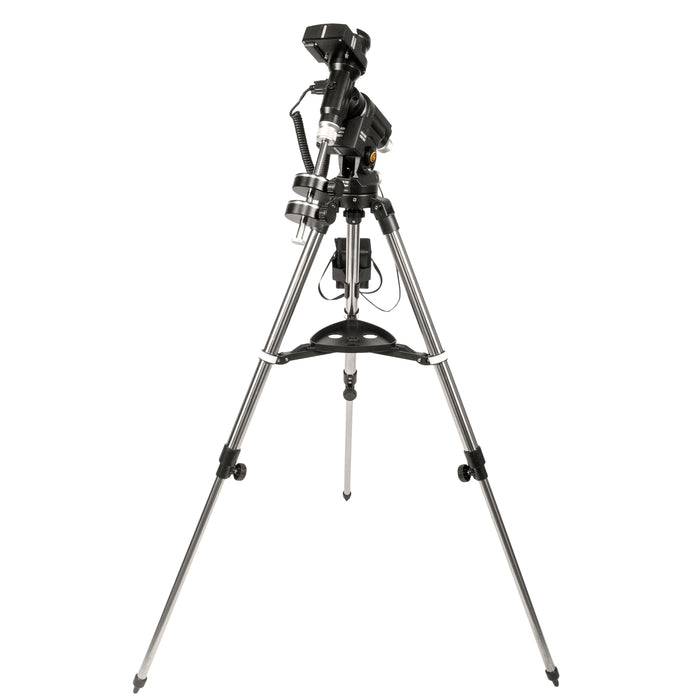

L'IEXOS-100 PMC-Eight Le système de suivi équatorial est unWifi informatisé astronomique complet ou tracker équatorial GOTO filaire avec PMC-HEight intégré Électronique adaptée à la fixation Petits télescopes ou caméras DSLR Attaché à l'assemblage d'appareil photo dslr scientifique Explore.

Utilisez avec l'application Free Explorestars pour les tablettes (Windows, Android, Amazon et Apple), ou avec les normes ASCOM gratuites PMC-Eight ASCOM Driver et le client ASCOM Poth d'explorer Scientific (câblé ou sans fil) pour travailler avec pratiquement tous les logiciels Sky qui prennent en charge ASCOM. La tablette ou l'ordinateur doit être acheté séparément.

L'IEXOS-100 utilise une conception de montage équatoriale allemande éprouvée et Explore le système révolutionnaire de contrôle de la précision PMC-Eight ™ de Scientific pour naviguer parfaitement dans le ciel nocturne et suivre les objets pendant qu'ils voyagent. Cette combinaison offre des performances d'observation et d'imagerie supérieures sans un prix prohibitif.

Les systèmes GOTO jouent un rôle important dans le monde de l'astronomie amateur, car ils garantissent que les utilisateurs passent moins de temps à rechercher des objets particuliers et plus de temps à observer et à l'imagerie. Le pmc-huit Avec ses connexions polyvalentes prises en charge avec des applications gratuites pour télécharger des ordinateurs Windows ou des tablettes Android et iOS uniquement (les tablettes doivent avoir un écran d'au moins 7 pouces), ou via le téléchargement GRATUIT ASCOM PMC-Eight Le client et le client de Poth pour vous connecter à votre logiciel astronomique conforme à l'ASCOM préféré, peuvent vous permettre de contrôler le télescope à quelques mètres ou en communiquant un ordinateur à computer avec une connexion Internet à partir de pratiquement partout dans le monde.

L'une des caractéristiques remarquables du système IEXOS-100 est sa conception équatoriale allemande. Lorsqu'il s'agit de suivre les étoiles avec un télescope, rien ne se compare à une monture équatoriale allemande (gemme) car elle suivra précisément les objets à mesure qu'ils se lèvent à l'est et se déroulent à l'ouest. Pour les observateurs, un joyau facilite le maintien de votre cible céleste dans votre oculaire. Pour les imageurs, cela vous aide à éviter les pièges d'astrophotographie courants comme la rotation du champ.

Avant de pouvoir suivre un objet, vous devez le trouver, et cet objectif peut être intimidant lorsque vous êtes confronté à une vaste étendue de ciel noir d'encre ou d'un ciel de la ville brillante. L'IEXOS-100 met un puissant système GOTO dans votre arsenal d'outils astronomiques qui éliminent la frustration de la navigation dans le ciel nocturne. Cette version intégrée du système PMC-Eight ™ d'Explore Scientific transcende le processeur unique standard de l'industrie en utilisant un microcontrôleur à 8 cœurs avec huit CPU qui fonctionnent indépendamment les uns des autres pour se concentrer sur les fonctions définies. Cette délégation de tâches parmi les processeurs se traduit par un système qui offre une réactivité supérieure, une efficacité, une fiabilité et des intervalles de synchronisation incroyablement rapides pour une acquisition d'images lisse et un suivi précis.

Bien qu'il soit complexe en interne, le système GOTO peut être facilement utilisé à partir de votre propre tablette Apple, Android ou Windows à l'aide de l'application Explorestars, qui a une nature intuitive qui rend simple et rapide pour aligner votre télescope, naviguer dans les étoiles et apprendre des détails sur Des dizaines de milliers d'objets célestes. Cette application dynamique est alimentée par une base de données qui est systématiquement mise à jour pour s'assurer qu'elle reste une ressource pertinente.

Notre engagement à créer un support GOTO rationalisé est évident dans d'autres choix de conception. L'IEXOS-100 a des embrayages de verrouillage lisses qui vous permettront de repositionner rapidement votre télescope d'un côté à l'autre et un bouton d'altitude pour des réglages de hauteur lisse. La base de montage comprend un petit tunnel d'alignement polaire qui permet aux utilisateurs d'aligner grossièrement leur configuration d'observation avec Polaris. Il a également un simple niveau de bulle qui est utile lors de la stabilisation de votre trépied. Les autres fonctionnalités incluent un support pour maintenir la batterie, qui alimente le PMC-huit système à travers 8 piles C (non inclus); deux contrepoids de 1 kg pour l'équilibrage; Et des marqueurs brillants dans certains points de la monture et du trépied afin que vous puissiez rester orienté avec votre configuration la nuit. La monture est conçue pour contenir jusqu'à 19 livres (portée, accessoires et contrepoids additionnés).

La monture pèse 9,45 livres (4,29 kg), tandis que le poids légerTrépied de voyage et le plateau accessoire pèse 5,5 livres (2,5 kg). La Trépied de voyage, lorsqu'il est effondré, mesure 27,25 pouces (69,21 cm) de hauteur.

Produits recommandés:

Ressources:

Spécifications

Numéro d'article ES-IEXOS-100-02
Poids de la tête de montage 9,45 lbs
Poids du trépied 5,35 lbs
Trépied complètement effondré, pas de tête de mont: 25.5”
Trépied ouvert, jambes rétractées, pas de tête de montage: 25”
Trépied ouvert, les jambes rétractées avec la tête de montage: 38,5 ”au plus haut point, 36” au centre du support de montage
Trépied ouvert, jambes entièrement étendues, pas de tête de montage: 42”
Trépied ouvert, jambes entièrement étendues avec la tête de montage: 45 ”au plus haut point
Contrepoids: 1 kg chacun
Capacité de poids de montage: Environ. 9 lbs (poids d'équipement uniquement), 15 livres photographiques (équipement et contrepoids); Environ. 19 livres visuels (équipement et contrepoids)

Vidéo

garantie

La garantie limitée est d'un an, qui se convertit à la garantie Explore Star lorsque le produit est enregistré dans les 60 jours suivant l'achat. Cliquez ici enregistrer.

Logiciel

Logiciel

Page d'accueil pmc-huit goto

Téléchargez le logiciel Explorestars ici

Trouvez des inserts sur vos questions PMC-Eight sur notre Base de connaissances

Télécharger le Manuel d'instructions

Résidents de CA: AVERTISSEMENT (S) PROP 65

SKU: ES-iEXOS-100-02

Product Specifications

Mount head weight: Instrument 9.45 lbs.
Tripod weight: 5.35 lbs.
Tripod fully collapsed, no mount head: 25.5”
Tripod open, retracted legs, no mount head: 25”
Tripod open, retracted legs with the mount head: 38.5” at highest point, 36” to the center of the mounting bracket
Tripod open, legs fully extended, no mount head: 42”
Tripod open, legs fully extended with the mount head: 45” at highest point
Counterweights: 1 kg each
Mount weight capacity: Approx. 9 lbs (equipment weight only),15 lbs Photographic (equipment and counterweights); Approx. 19 lbs Visual (equipment and counterweights)

The mount weighs 9.45 pounds (4.29 kg), while the lightweight Travel Tripod and accessory tray weighs 5.5 pounds (2.5 kg). The Travel Tripod, when collapsed is 27.25 inches (69.21 cm) tall.
